Box Making machine Box Folding Gluing Machine Artpaper Box Forming Machine Top and Bottom Box Mobile box, shirt box

Price 3999.0 USD ($)/ Unit

Get a Price/Quote

MOQ : 1 Unit

Box Making machine Box Folding Gluing Machine Artpaper Box Forming Machine Top and Bottom Box Mobile box, shirt box Specification

Country Of Origin
CHINA

Machine Type
PACKAGING

Voltage
220 Volt (v)

Product Type
Other

Power Source
Pneumatic

Operating Type
Automatic

Power
6500 Watt (w)

Dimension (L*W*H)
3550* 1550*2000 Millimeter (mm)

Weight (kg)
1200 Kilograms (kg)

Color
WHITE

Warranty
1 YEAR

About Box Making machine Box Folding Gluing Machine Artpaper Box Forming Machine Top and Bottom Box Mobile box, shirt box

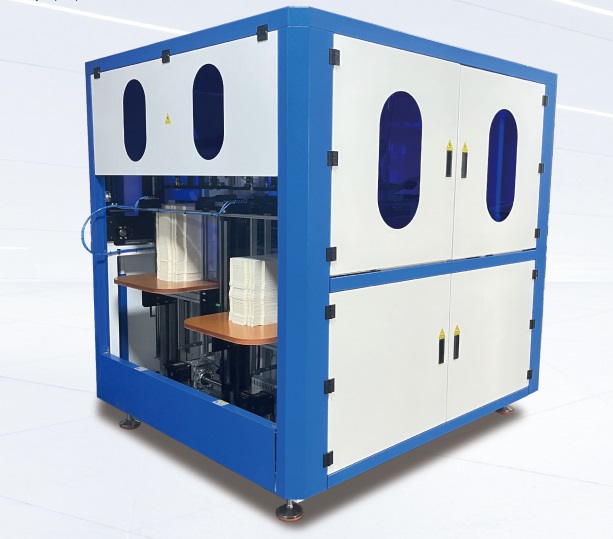

Automatic Paper Box Forming Machine

Feature:

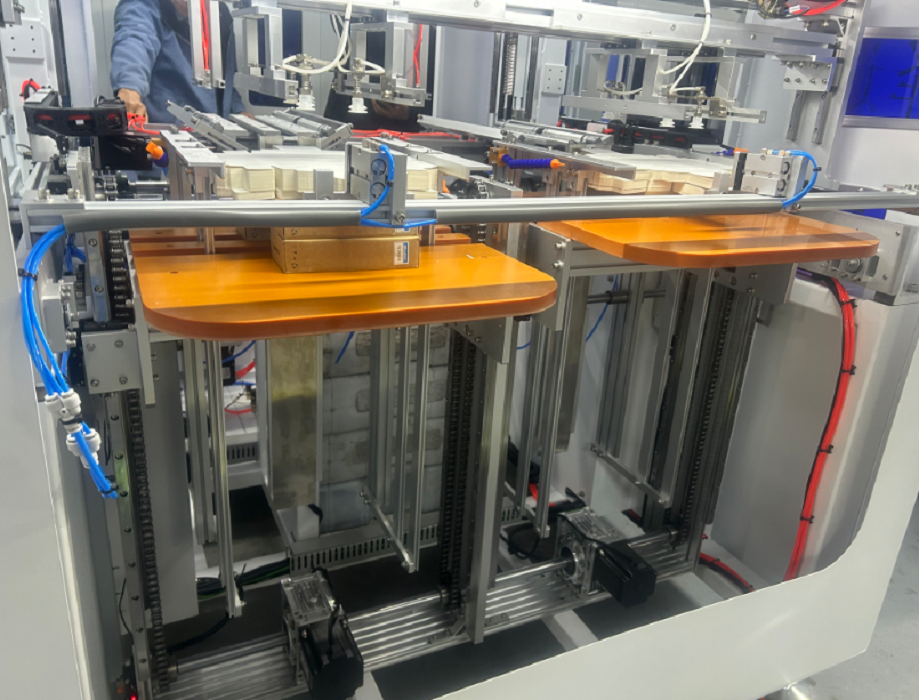

1. Uses dual material tables for material placement, with a totalloading height of 0.5 meters on each side.Double material tables enable simultaneous production of topand bottom covers.
2.Uses PLC control and touch screen operation. The touchscreen is movable for convenient operation.
3. Forming station with longitudinal and lateral servo control adjustable by input parameters.
4. Wall position control uses servo control for easy and aestheti-cally pleasing forming.
5.The entire machine has a compact structure and occupiesminimal space.
6.This equipment has a normal operating feed interval of 40-50minutes, with a feeding duration of 3-5 minutes

Technical Specifications:

model	JYD-ST3250
Sheetsize:	MAX:L540mm-W480mm
MINL240mm-W200mm
Finishedboxsize:	MAX:L360mm-W250mm-H80mm
MIN:L120mm-W80mm-H20mm
Speed:lengthonthetop	28-30pcs/mins
Wideonthetop	32-36pcs/mins
Widthof top	5-8mm
Settingtime:	30mins
Machinesize:	3550mm* 1550mm*2000mm
power:	6.5KW
Airrequired:	0.5-0.7Mpa
Appliedmaterials:	270-1000g,coated,cardboard,corrugatedboard

NO	DentalDam size	Dimension colour box(mm)-closedSize	Top&Bottom PaoerMaterial
	6X6	163X163X15	TopSize300gsm
1		160.5x160.5x15	BottomSize

2	135mmx135mm	151x151x15	TopSiz
		147x147x15	BottomSize
3	5x5	143x143x17	TopSiz
		139x139x17	BottomSize
