Automatic mouse glue trap making machine product line

Send Inquiry

Request To Call Back

Automatic mouse glue trap making machine product line

Name: Automatic mouse glue trap making machine product line
Brand: DONG GUAN JOYDA TECHNOLOGY CO., LTD.
Price: 60000 USD
Availability: InStock

Price 60000 USD ($)/ Set

Get a Price/Quote

MOQ : 1 Set

Automatic mouse glue trap making machine product line Specification

Power Rating
2000W

Model No
JYD-03

Voltage
AC220V Volt (v)

Country Of Origin
CHINA

Frequency
50 Hertz (HZ)

Product Type
Other

Technology
Other

Power Source
Electricity

Operating Type
Automatic

Power
2000 Watt (w)

Pressure
0.5 mpa

Surface Treatment
Painted

Dimension (L*W*H)
1500*800*1500 Millimeter (mm)

Warranty
1 year

Automatic mouse glue trap making machine product line Trade Information

Minimum Order Quantity
1 Set

FOB Port
Shenzhen

Payment Terms
Telegraphic Transfer (T/T)

Delivery Time
25 Days

Main Export Market(s)
Asia, Australia, Central America, North America, Eastern Europe, Western Europe, Middle East, Africa, South America

About Automatic mouse glue trap making machine product line

Automatic mouse glue trap making machine product line

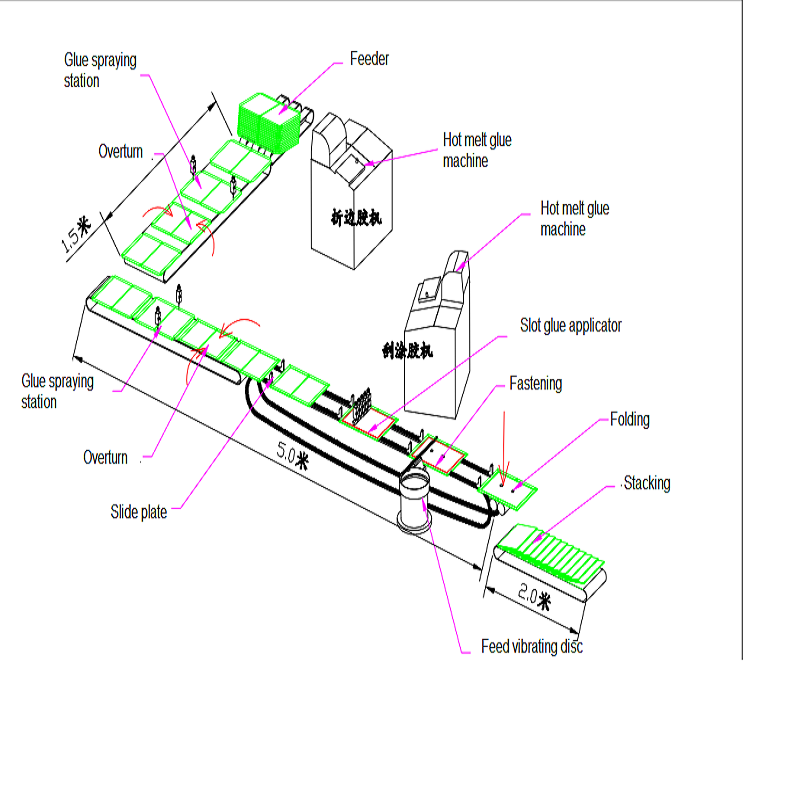

Production process:

Technical parameters:

Model:	Mouse glue trap making machine
Voltage	AC220V/50HZ
Power	2000W
Air supply	0.45-0.75mpa
Speed	30pcs/min
SIZE(forepart)	1500i800i1500mm,no include feeder
SIZE(segmenta posterius)	7000i800i1500mm
Slot coating glue width	i200CM

Configuration list

Product name	Specification	QTY	Logo	From
Gluing conveying position servo motor	ECMA-C20604RS	1set	Delta	Taiwan
Front section conveying speed control motor	0.2kw	1set	Dongfang	Taiwan
Reactor section speed control motor	0.4Kw	1set	Chuan Ming	Taiwan
Hose pipe(front section)	1.2m	2pcs	China	China
Gluing module(front section)	GT100	2 Set	GT	Mexico
Solenoid valve(front section)	45A-AC1-DDAA-1BA	2 Set	MAC	USA
Sensor for gluing		1set	Autonics	Korea
Encoder for gluing	MES-1200	1set	FOTER	China
PLC	DVP32ES200T	1set	Delta	Taiwan
HMI	7"	1set	Delta	Taiwan
Hose pipe(back section)	2.0M	2pcs	China	China
Gluing module(back section)	GT100	2 Set	GT	Mexico
Solenoid valve(back section)	45A-AC1-DDAA-1BA	2 Set	MAC	USA
Slot coating part	MAC	1group	Meltay	Spain
Solenoid valve(gluing part)	45A-AC1-DDAA-1BA	5set	MAC	USA
Hot melt glue machine	120L	1set	China	China
Air cylinder	TDA16-25	2 Set	China	China
Solenoid valve(Air cylinder)	SY5120-5LZD-01	2 Set	SMC	Japan
Detector(back section/gluing)	Sensor	2 Set	Omron	Japan

Streamlined Production for Mouse Glue Traps

The JYD-03 Automatic Mouse Glue Trap Making Machine simplifies and accelerates the production process. With its automatic operation and sturdy construction, it guarantees reliability and uniform output. Its design makes it suitable for both large and small-scale manufacturing environments, ensuring high productivity and consistent product quality.

Designed for Stability and Efficiency

Equipped with a robust AC220V power supply and a 2000W power rating, this machine operates efficiently under 0.5 mpa pressure. The painted surface treatment enhances longevity, and its precise dimensions allow for easy installation in tight spaces. The 1-year warranty further adds to the confidence in its enduring performance.

FAQ's of Automatic mouse glue trap making machine product line:

Q: How does the automatic mouse glue trap making machine work?

A: The machine automates the entire process of applying glue and assembling mouse traps. By loading materials and setting parameters, the device manages production cycles with minimal human intervention, ensuring uniform application and high-quality output.

Q: What are the main benefits of using this machine in production?

A: Adopting the JYD-03 model increases productivity, ensures consistent quality, minimizes manual labor, and reduces error rates. Its efficiency makes it ideal for businesses aiming to produce mouse glue traps at scale.

Q: When is the recommended time for machine maintenance?

A: Routine maintenance is recommended every few months, or as specified in the user manual. The included 1-year warranty covers any initial manufacturing defects, ensuring smooth operation during the warranty period.

Q: Where is this machine manufactured and how can it be sourced?

A: This machine is manufactured in China and is available through authorized distributors, exporters, manufacturers, suppliers, and traders. You can contact them directly to discuss pricing, customization, and delivery options.

Q: What is the production process executed by this machine?

A: The JYD-03 automates the feeding, glue application, assembly, and finishing of mouse glue traps, resulting in precise, repeatable, and high-volume output.

Q: How is the machine powered and what voltage does it use?

A: The machine operates on AC220V electricity with a 2000W power rating and a frequency of 50Hz, making it compatible with standard industrial electrical setups.

Q: What safety features or warranty protections does the machine include?

A: The machine features a protective painted coating and comes with a 1-year manufacturer warranty to cover defects and ensure reliable operation under normal usage conditions.
